Nickel alloy (Hastelloy/Incoloy/Monel)

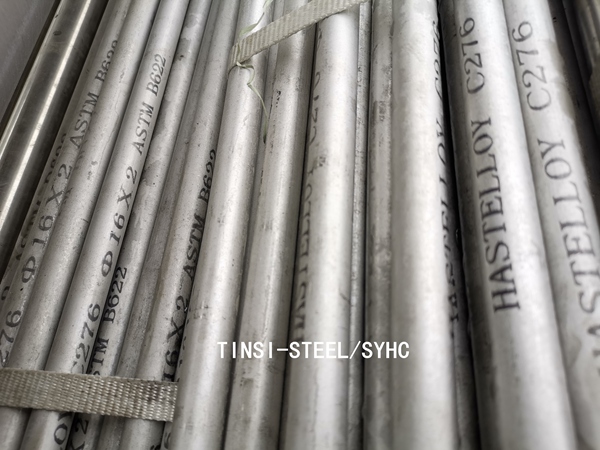

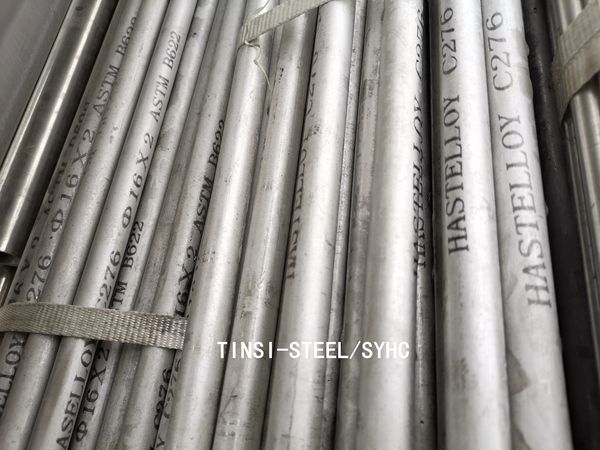

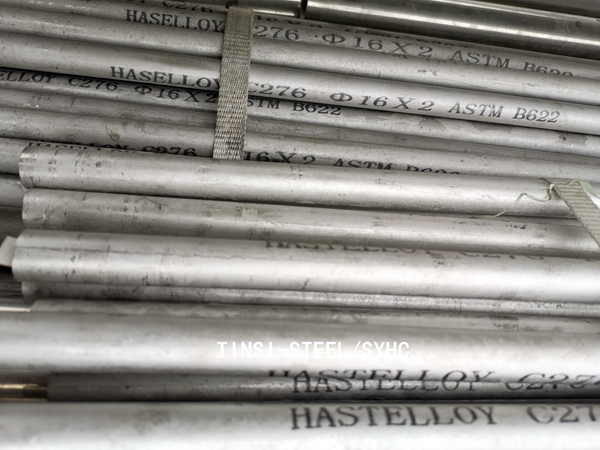

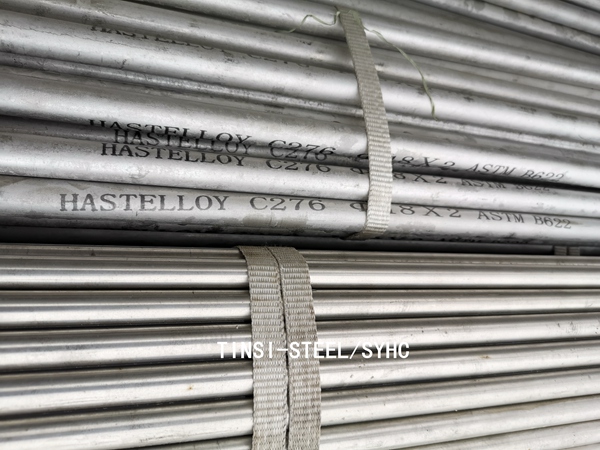

Hastelloy Alloy N10276 Hastelloy C276 Seamless Tubes Pipes HastelloyC276 DIN 2.4819 Tubing piping

Hastelloy Alloy N10276 Hastelloy C276 Seamless Tubes Pipes HastelloyC276 DIN 2.4819 Tubing piping

OD:6-426mm THK:0.5-25mm
SUFACE:AP(Annealed and pickling) / MP(mechanically polish)/BA(bright annealed)
Product description: Hastelloy Alloy N10276 Hastelloy C276 Seamless Tubes Pipes HastelloyC276 DIN 2.4819 Tubing piping,Hastelloy Alloy N10276 Hastelloy C276 pipes tubes,Hastelloy Alloy N10276 Hastelloy C276 tubing piping,
INQUIRY

Hastelloy Alloy N10276 Hastelloy C276 Seamless Tubes Pipes HastelloyC276 DIN 2.4819 Tubing piping

Key words

Hastelloy Alloy N10276 Hastelloy C276 pipes tubes,Hastelloy Alloy N10276 Hastelloy C276 tubing piping, Stainless steel Hastelloy Alloy N10276 Hastelloy C276 pipes tubes,stainless steel Hastelloy Alloy N10276 Hastelloy C276 tubing piping,Hastelloy Alloy N10276 Hastelloy C276 seamless tubes pipes,Hastelloy Alloy N10276 Hastelloy C276 seamless tubing piping,Hastelloy Alloy N10276 Hastelloy C276 industrial tubes pipes,Hastelloy Alloy N10276 Hastelloy C276 precision tubes pipes,Hastelloy Alloy N10276 Hastelloy C276 bright annealing tubes pipes,Hastelloy Alloy N10276 Hastelloy C276 capillary, ASTM A632 Hastelloy Alloy N10276 Hastelloy C276 capillary tubing, ASTM B163 B407 Hastelloy Alloy N10276 Hastelloy C276 tubes pipes,

Introduce：

Table1.Chemical composition ASTM B622 ASME SB 622 N10276 Hastelloy C276:

Alloy	%	Ni	Cr	Mo	Fe	W	Co	C	Mn	Si	V	P	S
N10276	Min.	Remainder	14.5	15	4	3
N10276	Max.	Remainder	16.5	17	7	4.5	2.5	0.01	1	0.08	0.35	0.04	0.03

Table2.Chemical composition DIN 17744 2.4819 Hastelloy C276:

Alloy	%	Ni	Cr	Mo	Fe	W	Co	C	Cu	Mn	Si	V	P	S
2.4819	Min.	Rest	14.5	15	4	3
2.4819	Max.	Rest	16.5	17	7	4.5	2.5	0.01	0.5	1	0.08	0.35	0.02	0.015

ASTM B622 ASME SB 622 N10276 Hastelloy C276 Density:8.87 g/cm³

ASTM B622 ASME SB 622 N10276 Hastelloy C276 Melting point:1325-1370 ℃

Table3.Mechanical properties of ASTM B622 ASME SB 622 N10276 Hastelloy C276 Alloy minimum in the room temperature

Alloy

Tensile strength

Rm N/mm²

ksi (MPa)

min

Yield strength

Rp0. 2N/mm²

ksi (MPa)

min

Elongation in 2in. (50.8mm)

or 4D min, %

ASME SB 622 N10276 C276

100 (690)

45 (310)

Characteristic ASTM B622 ASME SB 622 N10276 Hastelloy C276 as below:
1.Excellent corrosion resistance to most of corrosion media in oxidation and reduction environments.
2.Excellent resist pitting, crevice corrosion and stress corrosion cracking performance.
Metallurgical structure of ASTM B622 ASME SB 622 N10276 Hastelloy C276:
Hastelloy C276 is a Nickel-Molybdenum-Chromium alloy with the addition of Tungsten, has excellent corrosion resistance in a wide range of corrosive media and is especially resistant to pitting and crevice corrosion.C276 is face-centered cubic lattice structure.
Corrosion resistance of ASTM B622 ASME SB 622 N10276 Hastelloy C276:
C276 alloy suit for many kinds of chemical process industry which contain the oxidizing medium and reductant. High molybdenum and chromium content make it can resist the chloride corrosion, and tungsten make it corrosion resistance better.C276 is one of a few material that can resist the corrosion of most chlorine, hypochlorite and chlorine dioxide, this alloy have prominent corrosion resistance to high concentration chlorate( iron chloride and copper chloride).
Specification Standard ASTM B622 ASME SB 622 N10276 Hastelloy C276:

Standards	Desciption
ASTM B574	Standard Specification for Low-Carbon Nickel-Chromium-Molybdenum, Low-Carbon Nickel-Molybdenum-Chromium, Low-Carbon Nickel-Molybdenum-Chromium-Tantalum, Low-Carbon Nickel-Chromium-Molybdenum-Copper, and Low-Carbon Nickel-Chromium-Molybdenum-Tungsten Alloy Rod
ASTM B575	Standard Specification for Low-Carbon Nickel-Chromium-Molybdenum, Low-Carbon Nickel-Chromium-Molybdenum-Copper, Low-Carbon Nickel-Chromium-Molybdenum-Tantalum, Low-Carbon Nickel-Chromium-Molybdenum-Tungsten, and Low-Carbon Nickel-Molybdenum-Chromium Alloy Plate, Sheet, and Strip
ASTM B366	Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings
ASTM B564	Standard Specification for Nickel Alloy Forgings
ASTM B619	Standard Specification for Welded Nickel and Nickel-Cobalt Alloy Pipe
ASTM B622	Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube
ASTM B626	Standard Specification for Welded Nickel and Nickel-Cobalt Alloy Tube
ASTM B704	Standard Specification for Welded Alloy Tubes
ASTM B705	Standard Specification for Nickel-Alloy Welded Pipe
DIN 17744	nickel-forgeable alloy with molybdenum and chrome
DIN 17750	ribbons and sheet metal out of nickel with nickel-wrought alloy properties
DIN 17751	tubes out of nickel with nickel-wrought alloy properties
DIN 17752	rod made from nickel with nickel-wrought alloy properties
DIN 17753	wire out of nickel with nickel-wrought alloy properties
VdTÜV / Werkstoffblatt 432/1	extremely corrosion resistant nickel based alloy, niCr21Mo, material-nr. 2.4858 ribbon, sheet metal
VdTÜV / Werkstoffblatt 432/2	432/2 extremely corrosion resistant nickel based alloy, NiCr 21 Mo, material-nr. 2.4858 seamless pipe
VdTÜV / Werkstoffblatt 432/3	extremely corrosion resistant nickel based alloy, NiCr 21 Mo, material-nr. 2.3858 rod steel, forging

Application field ASTM B622 ASME SB 622 N10276 Hastelloy C276 :
C276 is widely used in the chemical field and petrifaction field, such as the element of chloride organic and catalyze system.This material especially suit for high temperature environment, impure inorganic acid and organic acid (such as formic acid and acetic acid), seawater corrosion environment.
1. The digester and bleacher in the use of paper pulp and paper making industry.
2. Absorption tower, re-heater and fan in the FGD system.
3. The equipment and parts in the use of acidic gas environments.
4. Acetic acid and anhydride reaction generator
5. Sulfur acid cooling
6.MDI
7.Manufacture and processing of impure phosphoric acid.
