Boiler pipe
Boiler Exchanger pipe, Stainless Steel Boiler Exchanger pipe,Stainless Steel Heat Exchanger Boiler pipes, Stainless Steel Seamless Heat Exchanger Boiler pipes, ASTM A312 Stainless Steel Seamless Boiler Tubing,Boiler pipes, Stainless Steel Boiler pipe,Stainless Steel Seamless Boiler Heat Exchanger pipes
Boiler exchanger As its name implies, this type of heat exchanger consists of an outer, elongated shell (large pressure vessel or housing) with a bundle of smaller diameter pipes located inside the shell housing. One type of fluid runs through the smaller diameter pipes, and another fluid flows over the pipes (throughout the shell) to transfer heat between the two fluids. The set of pipes is called a pipe bundle, and may be composed of several types of pipes; round, longitudinally finned, etc. depending on the particular application and fluids involved.
TINSI-STEEL has grown try to be one of the leading manufacturer and supplier for the seamless stainless steel boiler exchanger pipes such as ASTM A213, ASME SA213, Stainless Steel Pipes, Heat Exchanger pipes, Light Gauge Stainless Steel Pipes, and Stainless Steel BA pipe,and Stainless Steel Sanitary Tubing and capillary.
Mainly Boiler pipe grade of TINSI-STEEL
Austenitic stainless steels：304/304L/316/316L/316H/309S/309H/310S/310H/321/321H/347/347H
Duplex:2205/2507
Super Duplex:x100/904L/6-Moly 254/6-Moly 6XN
Nickel alloys:600/625/800/800H/800HT/825
Table：Main standards requirements
|
Standard |
ASTM-A213/A213M |
ASTM A269/A269M |
||
|
Grade |
TP304 TP304L TP304H |
TP304 TP304L TP304H |
||
|
Yield Strength60.2（mpa） |
≥175；≥205 |
/ |
||
|
Tensile Strength6（mpa） |
≥480；≥515 |
/ |
||
|
Elongation65（mpa） |
≥35 |
/ |
||
|
Flattening test |
H=1.09S / (0.09+S/D) |
H=1.09S / (0.09+S/D) |
||
|
Expanding test |
内孔扩张率21%-68%D |
α=60°,内孔扩张率21%-68%D |
||
|
|
P=220.6t/D |
P=220.6t/D |
||
|
D |
Pmax |
D |
Pmax |
|
|
25.4 |
7 |
25.4 |
7 |
|
|
25.4-38.1 |
10 |
25.4-38.1 |
10 |
|
|
38.1-50.8 |
14 |
38.1-50.8 |
14 |
|
|
50.8-76.2 |
17 |
50.8-76.2 |
17 |
|
|
76.2-127 |
24 |
76.2-127 |
24 |
|
|
≥127 |
31 |
≥127 |
31 |
|
|
或用户指定可由无损探伤代替Can be replaced by ultrasonic or eddy current flaw detection |
或用户指定可由无损探伤代替Can be replaced by ultrasonic or eddy current flaw detection |
|||
|
Intergranular corrosion test |
ASTM A262E (补充要求) |
ASTM A262E (补充要求) |
||
|
Nondestructive test |
ASTM E213(超声波) E309(涡流) E426(涡流)或水压任选一Automatic ultrasonic test to be agreed |
（Optional) ASTM E213(超声波) E309(涡流) E426(涡流)或水压任选一种 Automatic ultrasonic test to be agreed |
||
|
heat |
要求 Requirements |
要求 Requirements |
||
|
|
外径OD |
允许偏差 Tolerangce |
外径OD |
允许偏差 Tolerangce |
|
≤25.4 |
±0.10 |
≤12.7 |
±0.13 |
|
|
25.4~38.1 |
±0.15 |
＞12.7-38.1 |
±0.13 |
|
|
＞38.1~50.8 |
±0.20 |
＞38.1-88.9 |
±0.25 |
|
|
＞50.8~63.5 |
±0.25 |
＞88.9-139.7 |
±0.38 |
|
|
＞63.5~76.2 |
±0.30 |
＞139.7-203.2 |
±0.76 |
|
|
＞76.2~101.6 |
±0.38 |
|
|
|
|
＞101.6~190.5 |
＋0.38/-0.64 |
|
|
|
|
＞190.5~228.6 |
＋0.38/-1.14 |
|
|
|
|
|
OD |
WT Tolerangce |
OD |
WT Tolerangce |
|
≤38.1 |
+20%，-0 |
≤12.7 |
±15% |
|
|
＞38.1 |
+22%，-0 |
＞12.7-203.2 |
±10%T |
|
The inspection of TINSI-STEEL in Boiler pipe is strict than normal to ensure the quality requirement.
Heat Treatment and Solution Annealing / Bright Annealing
Cutting to required length and deburring;
Chemical Composition Analysis Test With 100% PMI and One pipe from each heat by Direct Reading Spectrometer

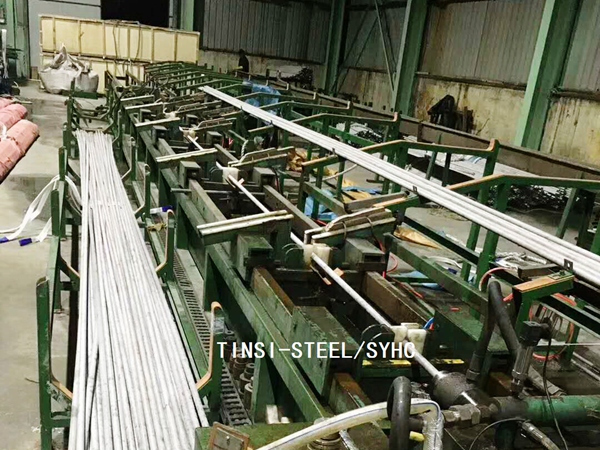

100% Hydrostatic Test and 100% Eddy Current Test
Ultrasonic Test subject to the MPS (Material Purchase Specification)
Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test
Impact Test subject to Standard request
Grain Size Test and Intergranular Corrosion Test
Ultrasoic measuring of Wall Thickness

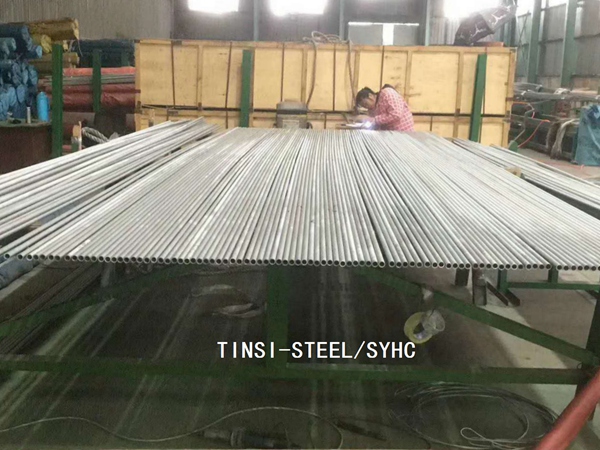

Visual Test and Endoscope Test for Surface Quality Test (BA/polish pipe)
Boiler pipe applications of TINSI-STEEL
Renewables Applications
Chemical Processing/Petrochemical Applications
Oil and Gas
Power Generation Applications

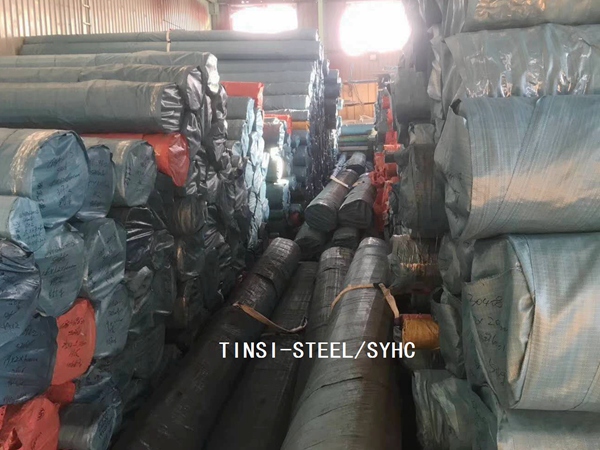

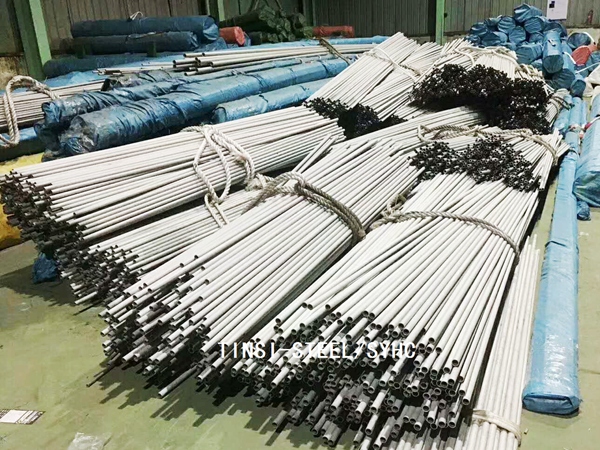

TINSI-STEEL maintain a huge inventory of boiler tubing, and can respond quickly to any emergency need, delivering the expertise to help get your facility back to full operation quickly in any circumstance. Whether emergency or routine, we are known for our knowledgeable, user friendly, cooperative service and long-term, ongoing partnership outlook.
